Product Overview

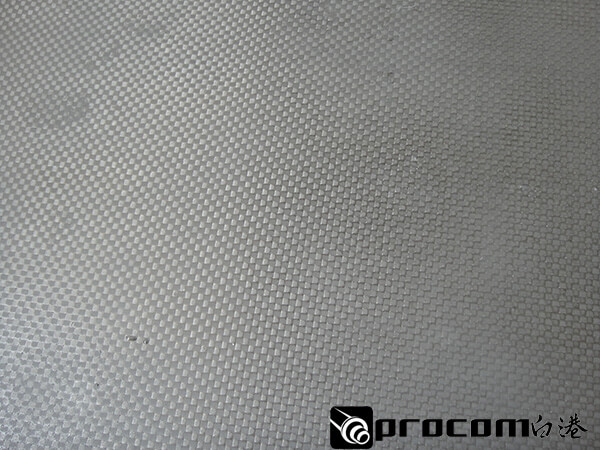

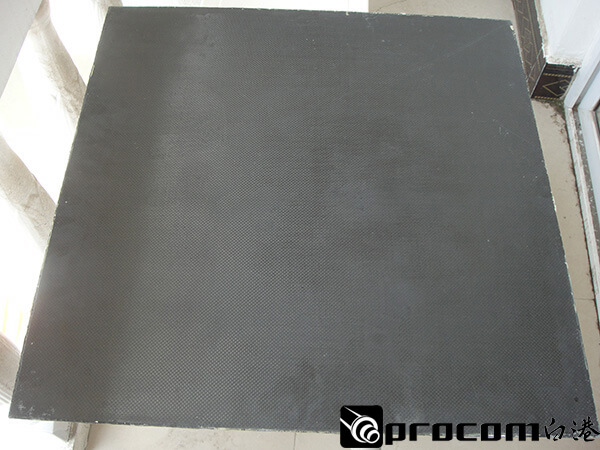

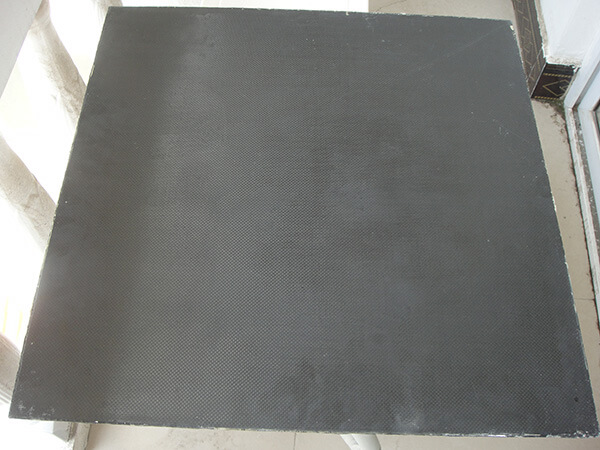

Nanjing Bai Gang Composite Materials Co., Ltd. introduces carbon fiber plates, which are manufactured using advanced carbon fiber reinforced resin composite material curing molding technology, and are a high-performance flat component. This product, with its exceptional lightweight, high strength, and corrosion resistance, has successfully replaced traditional metal sheets in multiple industrial fields, becoming the preferred material for equipment structural components, reinforcing pads, transmission support accessories, and other fields. The carbon fiber plates not only inherit the high strength and high rigidity of carbon fiber materials but also achieve an overall improvement in material properties through the optimized selection of the resin matrix, meeting the stringent requirements of modern industry for material properties.

Main Product Features

Significant lightweighting effect

Compared to traditional metal plates, carbon fiber boards can achieve significant weight reduction under the same load conditions, with a weight reduction range of up to 40%-65%. This feature gives carbon fiber boards an unparalleled advantage in applications that require reducing equipment weight and improving energy efficiency, such as wind power equipment, aerospace, transportation, and other fields.

2. High intensity and high rigidity

Carbon fiber boards possess exceptional tensile and compressive strength while maintaining good rigidity and excellent bending resistance, making them less prone to bending deformation. This enables carbon fiber boards to maintain stable structural performance under heavy loads or complex stress conditions, ensuring the safe operation of equipment.

3. Fatigue and corrosion resistance

Carbon fiber plate material boasts excellent fatigue resistance, maintaining stable performance under long-term cyclic loads and is less prone to fatigue cracks. Additionally, the material has good corrosion resistance, which prevents rust and aging even in harsh conditions such as humidity and outdoor exposure, thus prolonging the service life of equipment.

4. Significant vibration and noise reduction effect

The damping performance of carbon fiber composite materials is superior to that of metal materials, capable of effectively absorbing vibration energy and reducing vibration and noise during equipment operation. This characteristic is particularly important in scenarios where noise pollution reduction and improvement of equipment operation stability are required, such as textile machinery, papermaking equipment, etc.

5. Customized Services

Nanjing Bai Gang Composite Materials Co., Ltd. offers customized carbon fiber plate services, which can be tailored to customer drawings and cut to size as required. Additionally, by adjusting the orientation of carbon fiber plies and the number of fiber layers, the lateral and longitudinal mechanical properties of the plate can beTargetedoptimized to meet the strength requirements of different loading directions. This flexible customization service allows carbon fiber plates to better adapt to various complex application scenarios.

6. Strict quality inspection

The products are manufactured after strict dimensional and performance inspections to ensure each carbon fiber panel meets high-quality standards. This provides customers with reliable quality assurance and reduces risks during use.

Product detailed specifications

• BrandNanjing Bai Gang Composite Materials Co., Ltd.
• Place of OriginNanjing, China
• FunctionReplacement steel, aluminum plate manufacturing equipment structural parts, reinforced backing plates, transmission support accessories, etc.
• Part of the materialCarbon fiber reinforced resin composite material
• Product ModelCustomized according to customer requirements (various standard models are available for selection)
• ColorGenerally speakingblack（colors available upon customer's request）
• Surface TreatmentSmooth and flat, available for sandblasting and other treatments as per customer requirements.
• Thickness rangeCustom made according to customer requirements (usually ranging between 0.5mm-50mm)
• Size rangeMaximum customization up to several meters in length and width (specific dimensions to be determined based on customer requirements and production capacity)
• DensitySignificantly lower than traditional metal materials, the specific values depend on the carbon fiber content and resin type.
• Tensile strengthUp to several thousand MPa (specific values depend on the type of carbon fiber and lay-up method)
• Compressive strengthExcellent, capable of meeting usage requirements under various complex stress environments.
• Bending ModulusHigh, excellent bending performance
• Corrosion resistanceGood, can be used for a long time under severe conditions such as humidity and outdoor exposure without rusting and aging.
• Operating Temperature RangeThe service temperature range is usually -50℃ to +150℃ depending on the type of resin.

Application Scope

Carbon fiber boards, with their exceptional performance and flexible customization services, have been widely applied in various industrial fields. Mainly including:

• Wind Power Equipment PadBase and support parts for wind power equipment, reducing equipment self-weight and improving energy efficiency.
• Cooling tower mechanical support componentsAs a mechanical support component of the cooling tower, it bears heavy loads and maintains structural stability.
• Textile and paper machinery reinforcement parts: Reinforcement parts for textile machinery and papermaking equipment, enhancing the rigidity and stability of the equipment, reducing vibration and noise.
• Workholding fixtureAs material for industrial fixtures, it features high strength and lightweight design, facilitating operation and portability.
• Lightweight industrial load-bearing platesFor reinforcement and repair of industrial load-bearing structures requiring weight reduction, such as bridges and buildings.
• Various equipment reinforcing componentsAs reinforcing structural components for various equipment, enhance the overall strength and rigidity of the equipment, and prolong its service life.

Frequently Asked Questions (FAQ page)

Q1: Can carbon fiber panels be locally repaired?

A1: Carbon fiber panels are integral composite components; once cracked or damaged, they cannot be locally repaired. Total replacement is required after damage to ensure the structural safety and performance stability of the equipment. Therefore, during use, it is necessary to avoid overloading and impacts that may cause damage.

Q2: How long does it take for the customized service of carbon fiber panels?

A2: The time for customized services depends on specific requirements and production capacity. Generally, we assess based on the customer's drawings and requirements and provide a reasonable production cycle. Throughout the production process, we maintain close communication with the customer to ensure timely delivery of products and meet their needs.

Q3: How long is the service life of carbon fiber boards?

A3: The service life of carbon fiber boards depends on the specific usage environment and load conditions. Under normal circumstances, carbon fiber boards exhibit excellent fatigue and corrosion resistance, maintaining stable performance over long-term use. However, under harsh operating conditions or when subjected to heavy loads for extended periods, their service life may be affected. Therefore, it is recommended to regularly inspect and maintain carbon fiber boards to ensure their long-term stable operation.

Q4: How much is the price of carbon fiber board?

A4: The price of carbon fiber boards depends on various factors, including size, thickness, carbon fiber content, resin type, and the complexity of customized services. Therefore, a unified price standard cannot be provided. We will quote prices based on the specific requirements and order quantity of the customer and offer reasonable price solutions. At the same time, we also welcome customers to compare prices and inquire to ensure the most favorable price and service.

Q5: How to choose the appropriate carbon fiber board model and specification?

A5: Selecting the appropriate carbon fiber board model and specification requires considering multiple factors, including the operating environment, load conditions, size requirements, and budget. We recommend that customers communicate with our professional technical staff during the selection process, providing detailed descriptions of usage needs and scenarios. We will recommend suitable models and specifications based on the customer's actual conditions and offer professional technical support and solutions.
