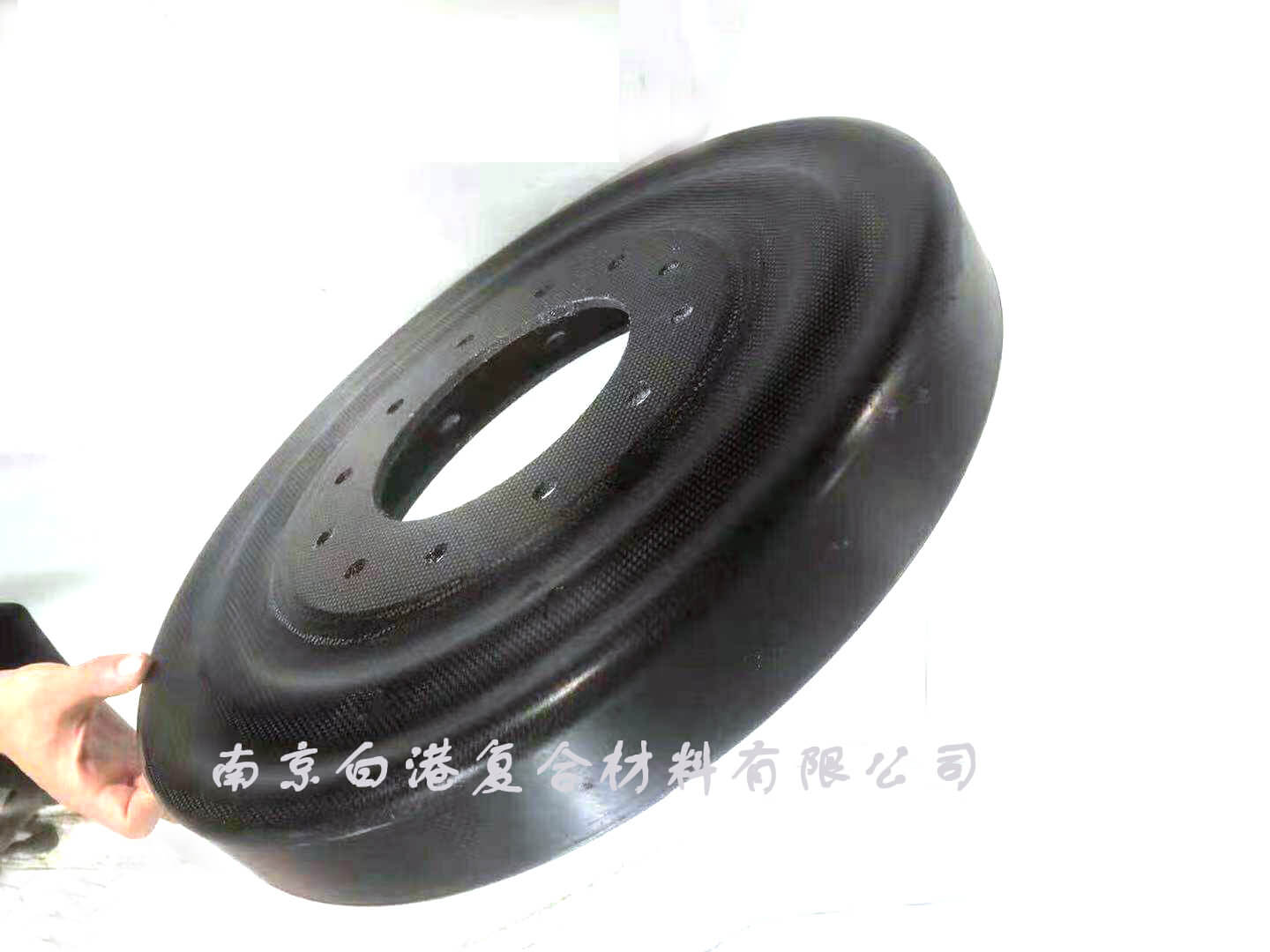

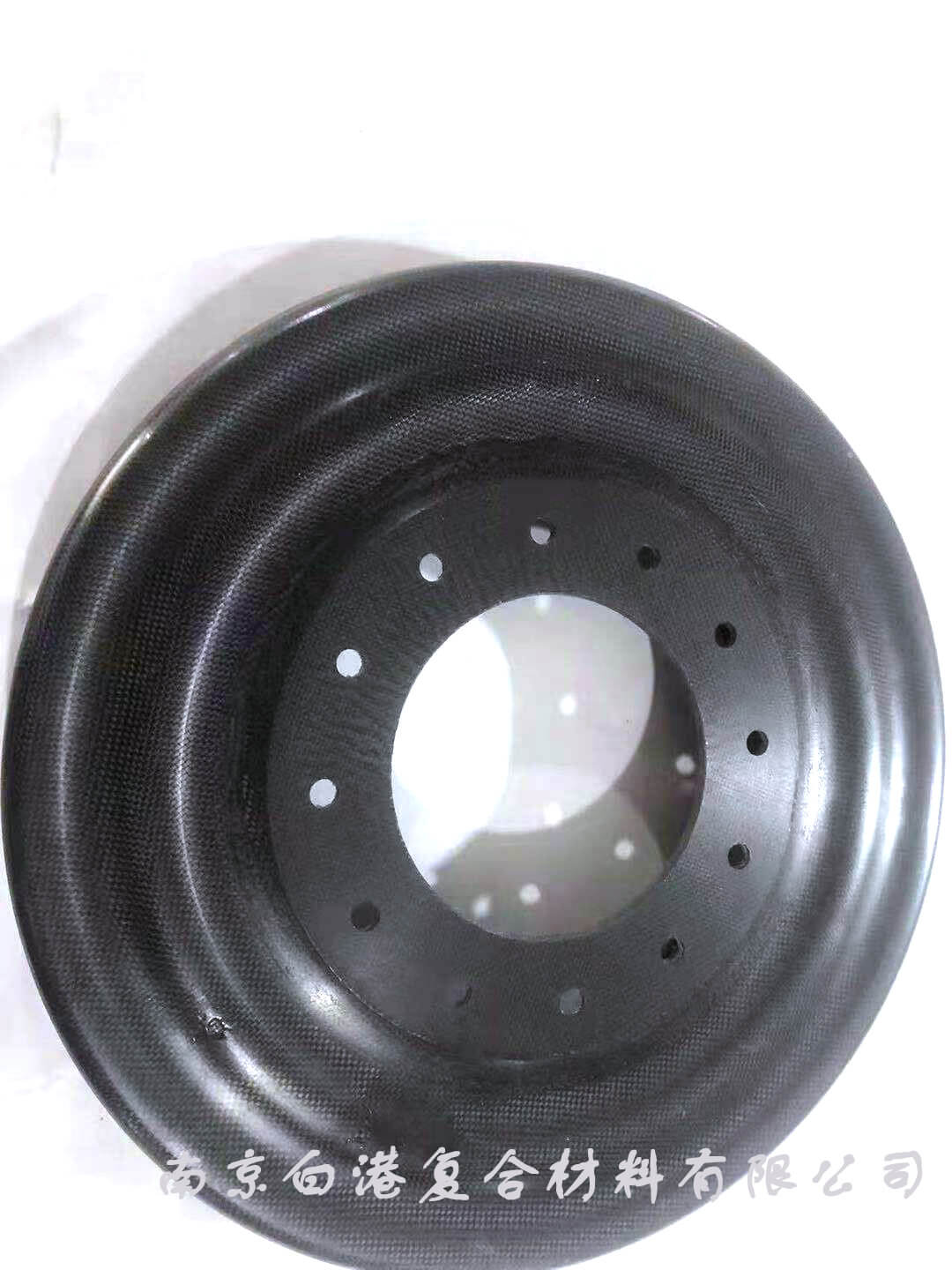

Product Overview

Nanjing Bai Gang Composite Materials Co., Ltd. introduces carbon fiber shaped parts (carbon fiber non-standard parts), which are made of carbon fiber reinforced resin matrix composite materials as the core raw material, through advanced processes such as molding, autoclave curing, and lamination curing. These products are non-standard, variable cross-section, curved, or specially shaped components. Designed to replace traditional steel and aluminum metal non-standard parts, they perfectly fit into special assembly spaces and complex load conditions of equipment, and are widely used in cooling towers, wind power, textile, papermaking machinery, and other fields, becoming an ideal choice for industrial lightweighting upgrades.

Main Product Features

Extreme lightweight, excellent performance

Compared to traditional metal non-standard parts, carbon fiber guide parts can achieve a weight reduction of 40%-65% under the same load conditions, significantly reducing the moment of inertia, effectively reducing the equipment's operating load, and improving energy efficiency. Its high rigidity is further enhanced through targeted lay-up design, increasing the strength of the load-bearing areas, making deformation less likely, and ensuring long-term stability.

2. Fatigue-resistant and corrosion-resistant, suitable for harsh working conditions

Carbon fiber materials have excellent fatigue and corrosion resistance, allowing for long-term use even in harsh environments such as humidity and outdoor conditions, with minimal maintenance required and extended equipment lifespan.

3. Vibration absorption, significant noise reduction

Excellent damping properties of carbon fiber can effectively absorb vibrations during equipment operation, reduce noise levels, provide a more comfortable working environment for operators, and simultaneously minimize the potential impact of vibrations on equipment accuracy.

4. Customized development, precise matching of needs

Support custom design and development of drawings, capable of processing various curved parts, bending parts, variable cross-section structural components, and special transmission accessories with mounting flanges. By adjusting the carbon fiber laying angle and layers, optimize the mechanical properties at different positions, ensure balanced stress distribution in the special-shaped structure, and avoid stress concentration and cracking.

5. Strict quality inspection, guaranteed quality

All finished products undergo size verification and performance testing to ensure compliance with high standards before delivery, providing customers with a reliable guarantee of product quality.

Product Detailed Parameters

BrandNanjing Bai Gang Composite Materials Co., Ltd.

Place of OriginChina·Nanjing

FunctionReplacing traditional metal non-standard parts, achieving lightweight equipment, low vibration, and long service life; suitable for non-standard transmission connection parts, brackets, transition structural parts, and other industrial lightweight components.

Part of the materialCarbon fiber reinforced resin matrix composite materials (carbon fiber content can be adjusted according to requirements, generally more than 60%)

Product ModelSupport custom development; model determined according to specific design drawings.

Appearance featuresNon-standard, variable cross-section, curved or special-shaped, smooth surface, surface treatment can be done as required (such as painting, electroplating, etc.)

Size RangeCustomized according to customer requirements, no fixed size limit

WeightCompared to traditional metal parts, a weight reduction of 40%-65% (specific reduction varies according to part structure and wall thickness) can be achieved.

Carrying capacityCustomized according to the lay-up design and carbon fiber content, it can meet the load requirements under different working conditions.

Molding TechnologyMolding, hot pressing, lamination curing, etc.

Laminated design：Can adjust the laying angle and layers of carbon fiber to optimize mechanical properties

Quality Inspection StandardsDimension verification, performance testing (including strength, stiffness, fatigue resistance, etc.)

Application Scope

Carbon fiber shaping parts, with their outstanding performance and customization capabilities, are widely used in the following fields:

Cooling towerAs non-standard transmission connecting parts, brackets, etc., achieve equipment lightweighting, reduce operating load, and improve energy efficiency.

2. Wind powerUsed for connecting wind turbine blades, internal tower support structures, etc., to enhance overall performance and extend service life.

Textile machineryAs transmission components, brackets, etc., reduce vibration and noise, improve textile accuracy and efficiency.

4. Papermaking MachineryFor paper machine frames, transmission connectors, etc., it withstands complex load conditions to ensure stable operation of the equipment.

5. Other Industrial FieldsSuitable for various non-standard structural components requiring lightweight design, low vibration, and long service life, such as in aerospace, automotive manufacturing, and rail transit industries.

Frequently Asked Questions (FAQ page)

Q1: What are the advantages of carbon fiber shaping parts compared to traditional metal non-standard parts?

A1: Carbon fiber shaping parts have significant advantages such as extreme lightweight, high rigidity, fatigue resistance, corrosion resistance, and vibration absorption. Under the same load-bearing conditions, they can achieve a weight reduction of 40%-65%, reducing the operating load of the equipment; at the same time, their excellent damping properties can effectively absorb vibration, lower noise levels, and extend the service life of the equipment.

Q2: Is custom development supported for carbon fiber shaping parts?

Yes, we support custom design and development of drawings based on customer requirements, capable of processing various curved parts, bending parts, variable cross-section structural components, and special transmission accessories with mounting flanges. By adjusting the carbon fiber laying angle and layers, we optimize the mechanical properties at different positions to ensure the product precisely meets customer needs.

Q3: What are the molding processes for carbon fiber shaping parts?

A3: We employ various forming processes such as molding, autoclave curing, and lamination, to ensure the product has excellent mechanical properties and surface quality. Additionally, through stringent quality control procedures, we guarantee that all finished products meet high standards.

Q4: What should be paid attention to when using carbon fiber shaping parts?

A4: Carbon fiber shaping parts are integral composite material components that cannot be repaired after local cracking and damage, and it is recommended to replace them as a whole. During use, avoid excessive impact and scratches, regularly inspect the product condition to ensure safe operation. At the same time, this product is suitable for industrial projects with high requirements for lightweight, low vibration, and long service life.

Q5: How to choose the appropriate carbon fiber shaping part model?

A5: Selecting the appropriate carbon fiber shaping part model requires comprehensive consideration of factors such as specific application scenarios, load requirements, size limitations, etc. We offer professional technical consultation and customized services, providing the best solution according to customer needs. Please contact our sales team or technical engineers for more detailed product information and selection advice.
