Product Overview

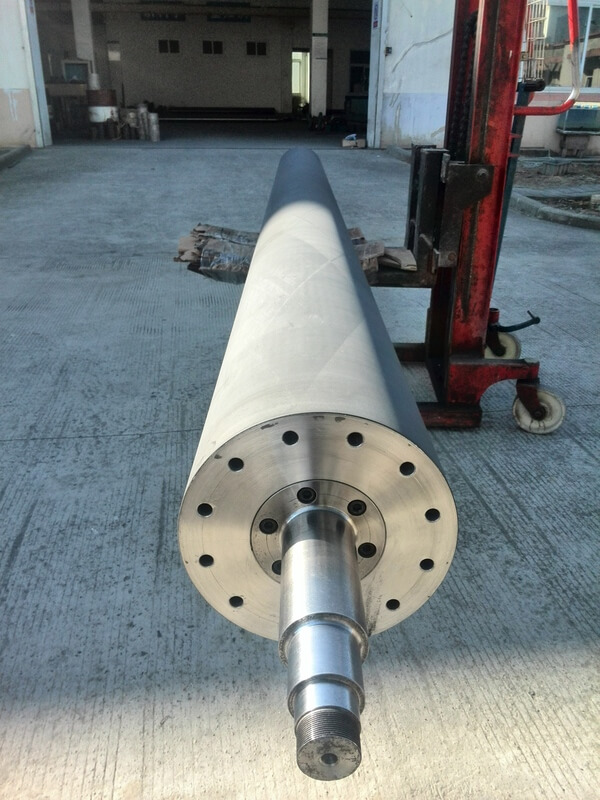

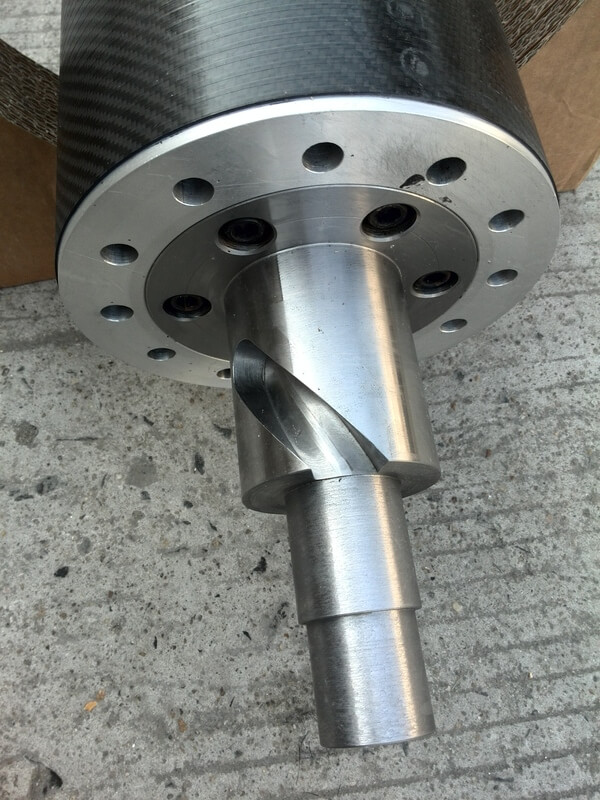

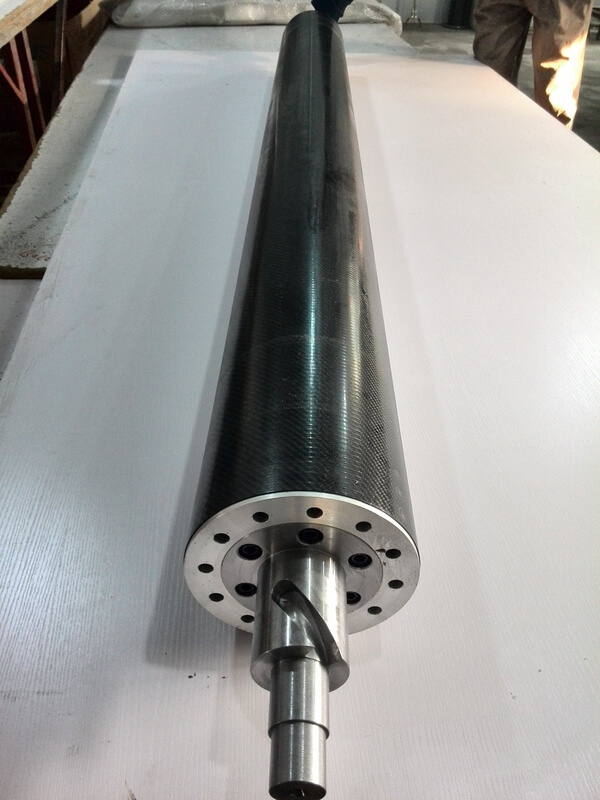

Nanjing Bai Gang Composite Materials Co., Ltd. introduces the carbon fiber guide roller, a high-performance industrial component made of advanced carbon fiber composite materials. With its lightweight, high strength, and durable features, the carbon fiber guide roller is gradually replacing traditional metal guide rollers and becoming the ideal choice for the high-speed automation equipment field. This roller not only boasts excellent physical properties but also demonstrates significant application advantages in various industrial scenarios, providing strong support for improving equipment efficiency and reducing energy consumption.

Main Product Features

Ultimate lightweight design

The density of carbon fiber composites is only about 1.7g/cm³, which is significantly lower than that of stainless steel (7.8g/cm³) and aluminum alloy (2.7g/cm³). This lightweight characteristic allows carbon fiber guide rollers to greatly reduce equipment load during high-speed operation, thereby reducing energy consumption. At the same time, the lighter weight also facilitates easier high-speed start and stop of the equipment, enhancing overall operational efficiency.

2. Ultra-high strength and rigidity

The tensile strength of carbon fiber guide rollers is more than 8 times that of steel guide rollers, which means it can withstand greater torque and tension generated during high-speed operation. This ultra-high strength and stiffness ensure the stability and reliability of the guide roller under long-term, high-load operation, reducing the risk of failure due to material fatigue.

3. Excellent durability

Carbon fiber guide rollers boast excellent corrosion resistance, capable of withstanding erosion from acidic, alkaline, and oxidizing environments, thereby extending their service life. Additionally, their high wear resistance addresses the issue of the non-durable rubber layer on traditional metal guide rollers, reducing the frequency of roller replacement and maintenance costs. Moreover, carbon fiber guide rollers have a low coefficient of thermal expansion, making them less prone to deformation in high-temperature environments between 50°C and 150°C, ensuring dimensional stability.

4. Excellent high-speed performance

The rotational inertia of carbon fiber guide rollers is reduced by an average of 2.5-3 times compared to traditional aluminum rollers. This feature enables the equipment to shorten the startup and shutdown time by over 50%, enhancing production efficiency. Additionally, carbon fiber guide rollers offer better vibration damping properties, improving operational stability and processing accuracy, meeting the requirements for high-precision machining.

Product detailed parameters

• BrandNanjing Bai Gang Composite Materials Co., Ltd.
• Place of OriginChina
• FunctionHigh-speed transmission, suitable for various high-speed automated equipment
• Some materialsUtilizing high-quality carbon fiber composite materials to ensure superior product performance
• Product ModelCF guide roller, customizable in different specifications and sizes according to customer requirements
• DensityApproximately 1.7g/cm³, achieving ultimate lightweight.
• Tensile strengthIt is more than 8 times the strength and rigidity of steel guide rollers, ensuring ultra-high strength and rigidity.
• Corrosion resistanceAcid and alkali resistant, oxidation resistant, suitable for harsh environments
• Wear resistanceHigh wear resistance, extended service life
• Coefficient of thermal expansionSmall, guaranteed dimensional stability
• Moment of inertiaReduced by 2.5-3 times compared to traditional aluminum rollers, enhancing high-speed performance.

Application Scope

Papermaking machinery field

In papermaking machinery, carbon fiber guide rollers are responsible for key tasks such as correcting, supporting, transmitting power, and tensioning the copper mesh. Their lightweight, high-strength, and corrosion-resistant properties make the papermaking machinery more stable and reliable during high-speed operation, enhancing the quality and efficiency of paper production.

2. Textile and Printing Machinery Field

Textile and printing machinery have very high requirements for the precision and stability of guide rollers. Carbon fiber guide rollers, with their excellent high-speed performance and dimensional stability, can meet the needs of these machines during high-speed operation, ensuring clear textures of textiles and bright colors of printed products.

3. Film and lithium battery equipment field

In film slitting equipment for PE, PET, BOPP, and lithium battery separator equipment, carbon fiber guide rollers play a crucial role. Their high wear resistance and corrosion resistance ensure stable performance over long periods, enhancing the precision of film slitting and the production quality of lithium battery separators.

4. High-speed automation equipment field, such as packaging machinery

Packaging machinery and other high-speed automated equipment have high requirements for the light-weight, high-strength, and high-speed performance of guide rollers. Carbon fiber guide rollers, with their excellent comprehensive performance, have become the ideal choice for these equipment. They not only reduce equipment load and energy consumption but also enhance the stability and production efficiency of the equipment.

Frequently Asked Questions (FAQ page)

Q1: What are the advantages of carbon fiber guide rollers compared to traditional metal guide rollers?

A1: Carbon fiber guide rollers offer advantages such as extreme lightweight, ultra-high strength and stiffness, excellent durability, and superior high-speed performance compared to traditional metal guide rollers. These advantages make carbon fiber guide rollers have a broader application prospect in the field of high-speed automated equipment.

Q2: How is the corrosion resistance of the carbon fiber guide roller?

A2: Carbon fiber guide rollers possess excellent corrosion resistance, capable of withstanding the erosion of acidic, alkaline, and oxidizing environments. This allows them to maintain stable performance in corrosive environments such as chemical industries and marine settings, thereby extending their service life.

Q3: How is the wear resistance of the carbon fiber guide roller?

A3: Carbon fiber guide rollers feature high wear resistance, solving the issue of traditional metal guide roller vulcanized layer being non-durable. Under long-term and high-load operation, carbon fiber guide rollers can still maintain stable performance, reducing the frequency of roller replacement and maintenance costs.

Q4: What high-speed automated equipment is suitable for carbon fiber guide rollers?

A4: Carbon fiber guide rollers are widely used in high-speed automated equipment fields such as papermaking machinery, textile and printing machinery, film and lithium battery equipment, and packaging machinery. With excellent comprehensive performance, they meet the equipment's requirements for lightweight, high strength, and high-speed operation.

Q5: What customized services does Nanjing Bai Gang Composite Materials Co., Ltd. offer for carbon fiber guide rollers?

A5: Nanjing Bai Gang Composite Materials Co., Ltd. offers customized services for carbon fiber guide rollers, capable of producing different specifications and sizes according to customer requirements. Additionally, the company provides professional technical consultation and after-sales service to ensure timely support and assistance to customers during use.
