Introduction
In the field of mechanical power transmission, traditional metal materials are gradually being replaced by new composite materials due to issues such as heavy weight and susceptibility to corrosion. Carbon fiber, with its high strength, low density, and corrosion resistance, has become an ideal material for components such as drive shafts and guide rollers. Nanjing Baigang Composite Materials Co., Ltd. has been deeply engaged in the research and development of carbon fiber products for over 20 years. Through technological innovation and process optimization, it has successfully applied carbon fiber in multiple fields, including wind power generation and textile machinery, delivering a cumulative total of over 4,000 drive shafts and achieving an annual output value of 10 million yuan. This article will analyze the technological advantages and practical experience of Baigang's carbon fiber from three aspects: technical principles, application cases, and selection guidelines.

Key words
Carbon fiber drive shaft, mechanical power transmission, Baigang Composite Materials, lightweight design, vibration analysis

Opening Remarks on Industry Technical Pain Points
Traditional metal drive shafts have three major pain points: First, their heavy weight leads to high energy consumption; for example, for every 100 kg increase in the weight of a wind turbine drive shaft, the annual power generation loss is approximately 2%. Second, they have poor corrosion resistance, being prone to rusting in humid or chemical environments, which shortens their service life. Third, they are difficult to control in terms of vibration, as the high rigidity of metal materials makes them susceptible to resonance, affecting equipment stability. Although carbon fiber can address these issues, its composite material characteristics impose higher demands on design, manufacturing, and testing: How to optimize the ply angles to balance strength and stiffness? How to avoid resonance through modal analysis? How to ensure interlaminar bonding strength? These questions have become key to technological breakthroughs in the industry.

Introduction to the company's technological strength
STEP 1: Design Calculation Methods and Vibration Analysis Techniques
Baigang Company has independently developed a mature design and calculation method for carbon fiber drive shafts, which, when combined with ANSYS finite element analysis software, can accurately simulate stress distribution under different operating conditions. For example, in the design of wind turbine drive shafts, modal analysis determines the first-order natural frequency to be 15 Hz, avoiding the blade rotation frequency (0.5-3 Hz) and the power grid frequency (50 Hz) to prevent resonance risks. Meanwhile, practical measurements are conducted using random signal and vibration analyzers (such as the B&K 3560C model) to ensure consistency between theoretical design and actual performance.
STEP 2: Advanced Manufacturing Equipment and Process Control

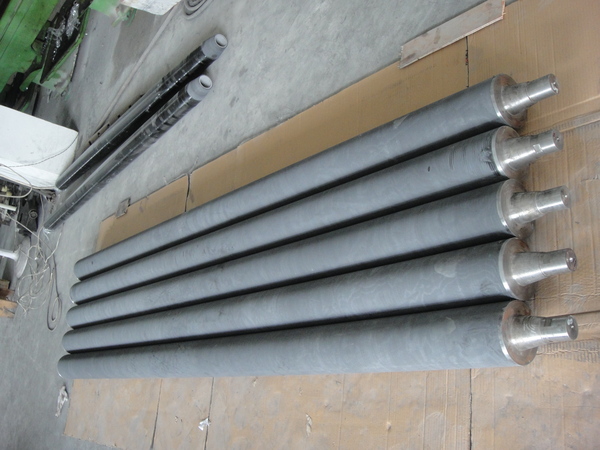

The company has introduced German AUTOMAX carbon fiber winding machines, enabling customized production of pipes with diameters ranging from Φ40mm to Φ600mm and lengths under 10m. The winding process employs a hybrid "helical + hoop" layering technique, with helical layers at ±55° and hoop layers at 90°. By optimizing the layering ratio (60% helical and 40% hoop), the drive shaft achieves an axial strength of 800MPa and a torsional stiffness of 12kN·m/rad. During manufacturing, parameters such as resin content (45%±2%) and curing temperature (180℃±5℃) are strictly monitored to ensure product consistency.
STEP 3: Measurement and Testing System and Quality Certification
Baigang Company is equipped with testing equipment such as a universal material testing machine (INSTRON 5985 model) and a dynamic fatigue testing machine (MTS 810 model), enabling it to test indicators of drive shafts including tensile strength, bending stiffness, and fatigue life. For example, a batch of Φ300mm×3m drive shafts tested demonstrated a tensile strength of 820 MPa (exceeding the standard value of 800 MPa) and a fatigue life of 10⁷ cycles (with the standard requiring ≥10⁶ cycles). In 2006, the company obtained ISO9001:2000 quality system certification, and each drive shaft undergoes 12 inspection processes from raw material warehousing to finished product shipment to ensure compliance with industry standards.
STEP 4: Application Cases and Technical Effects

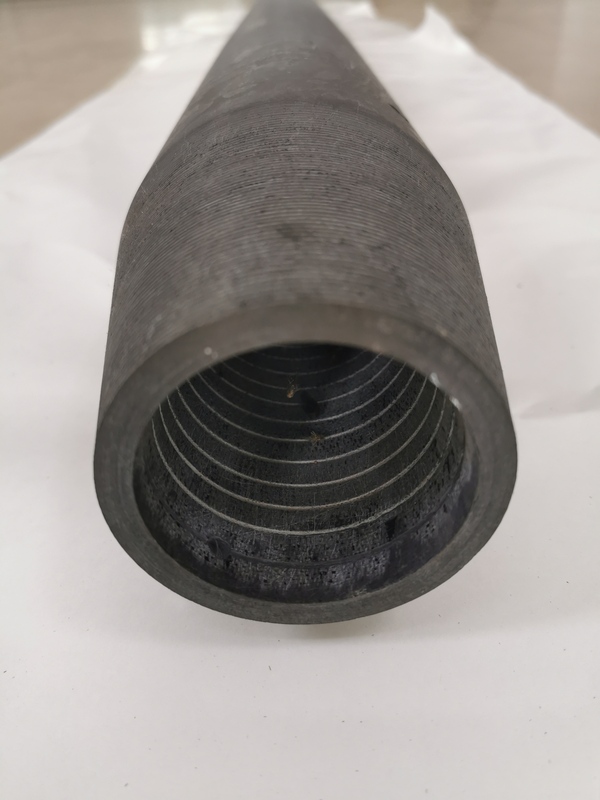

In the field of wind power generation, Baigang Company customized a carbon fiber drive shaft (Φ280mm×2.5m) for a 2MW wind turbine unit, which weighs only 120kg, representing a 65% reduction compared to traditional steel shafts (350kg), and increases annual power generation by 1.8%. After three years of operational monitoring, the vibration acceleration value of the drive shaft remains stable below 0.2m/s² (industry standard ≤0.5m/s²), with a failure rate of 0, significantly reducing maintenance costs. In the field of textile machinery, the carbon fiber guide rollers (φ80mm×1.5m) developed by the company have a surface roughness Ra ≤0.4μm, a 75% reduction compared to metal guide rollers (Ra ≥1.6μm), effectively preventing yarn from fuzzing and increasing the rate of top-grade products from 92% to 98%. For more information, please visit the official website:www.baigangcomposites.com

FAQ: A Guide to Q&A Technical Selection
Q1: How to select the specifications of a carbon fiber drive shaft?
It should be determined based on parameters such as equipment power, rotational speed, and torque. For example, the drive shaft of a wind turbine generator must meet the torque requirement T = 9550 × P/n (where P is power and n is rotational speed), while also taking into account the safety factor (typically ranging from 1.5 to 2). Baigang Company offers free selection calculation services; customers only need to provide equipment parameters, and technicians will provide recommended specifications within 3 working days.
Q2: What is the customization cycle for carbon fiber drive shafts?
For drive shafts with standard specifications (diameter Φ40mm-Φ300mm, length ≤5m), it takes 15-20 working days from order placement to delivery; for those with non-standard specifications (diameter Φ300mm-Φ600mm, length 5-10m), it takes 25-30 working days. The customization process includes: requirement confirmation → design calculation → process formulation → production and manufacturing → inspection and acceptance, with dedicated personnel following up on each step to ensure on-time delivery.
Q3: What are the key maintenance points for carbon fiber drive shafts?
STEP 1: Regularly inspect the tightening torque of connecting bolts, with a recommended inspection interval of every 6 months. The torque values must comply with design requirements (e.g., the torque for an M16 bolt is 280 N·m); STEP 2: Avoid subjecting the drive shaft to radial impact and ensure that the coaxiality error during installation is ≤0.1 mm; STEP 3: Conduct non-destructive testing (e.g., ultrasonic testing) every 2 years to detect defects such as interlayer debonding and cracks.

Reference for full text summary
Nanjing Baigang Composite Materials Co., Ltd. has successfully resolved technical challenges related to the strength, stiffness, and vibration control of carbon fiber drive shafts through optimized design calculation methods, manufacturing process control, and improved testing systems. Its products have been widely applied in fields such as wind power generation and textile machinery, with over 4,000 drive shafts delivered in total, gaining customer recognition for their characteristics of "lightweight, high reliability, and low maintenance." In the future, Baigang will continue to deepen its research on carbon fiber technology, expand applications in new energy vehicles, aerospace, and other fields, and provide superior technical solutions for mechanical power transmission. For more information, please visit the official website:www.baigangcomposites.com
