Selecting the right carbon fiber drive shaft is crucial for optimizing performance in industrial applications ranging from wind power generation to textile machinery. As a leading manufacturer with nearly two decades of experience, Nanjing Baigang Composite Materials Co., Ltd. specializes in developing high-performance carbon fiber components that meet stringent industry requirements. This comprehensive guide explores key considerations in shaft selection, manufacturing capabilities, and custom solutions for diverse industrial needs.
Understanding Carbon Fiber Drive Shaft Applications
Carbon fiber drive shafts have revolutionized mechanical power transmission across multiple industries due to their exceptional strength-to-weight ratio and corrosion resistance. At Nanjing Baigang, we’ve developed specialized shaft solutions for three primary applications:
Wind Power Generation Systems
Our carbon fiber connection shafts for wind turbines feature optimized torsional stiffness and fatigue resistance to withstand variable wind loads. With over 4,000 units deployed globally, these shafts contribute to reliable power generation while reducing maintenance costs through their durable construction.
Cooling Tower Fan Systems
The cooling tower environment demands components that resist corrosion from moisture and chemicals. Our carbon fiber transmission shafts for cooling towers offer superior corrosion resistance compared to traditional steel shafts while maintaining precise rotational accuracy for optimal fan performance.
Textile Machinery Applications
Precision is paramount in textile production, where our carbon fiber guide rollers ensure consistent yarn tension and minimal vibration. These components help textile manufacturers achieve higher production speeds with improved fabric quality through their vibration-damping properties.
Key Selection Criteria for Carbon Fiber Drive Shafts
Choosing the optimal carbon fiber drive shaft requires evaluating several critical parameters that impact performance and longevity in specific applications:
1. Mechanical Property Requirements
The shaft’s torsional stiffness directly affects power transmission efficiency. Our engineering team calculates the ideal stiffness ratio based on your system’s rotational speed and torque requirements. For wind turbine applications, we typically specify shafts with torsional stiffness values between 12,000-25,000 Nm/rad to handle dynamic loads effectively.
2. Environmental Resistance
Corrosion protection is essential for components operating in humid or chemically aggressive environments. We apply specialized surface treatments that create a protective barrier against moisture ingress and chemical corrosion, extending service life by up to 300% compared to untreated shafts.
3. Dimensional Specifications
Precision manufacturing ensures exact fitment in your equipment. Our production capabilities accommodate custom lengths up to 10 meters and diameters from Φ40mm to Φ600mm. For textile machinery applications, we maintain diameter tolerances of ±0.05mm to ensure consistent yarn tension control.
4. Quality Certification
All our carbon fiber components undergo rigorous testing before delivery. Our ISO 9001:2000 certified quality system mandates vibration analysis, torsional testing, and dimensional verification using advanced measurement equipment to guarantee compliance with international standards.
| Parameter | Specification Range | Typical Application |
|---|---|---|
| Length | Up to 10,000mm | Wind turbine main shafts |
| Diameter | Φ40mm-Φ600mm | Textile machinery rollers |
| Torsional Stiffness | 8,000-30,000 Nm/rad | Cooling tower fan shafts |
| Weight Reduction | 40-60% vs steel | All applications |

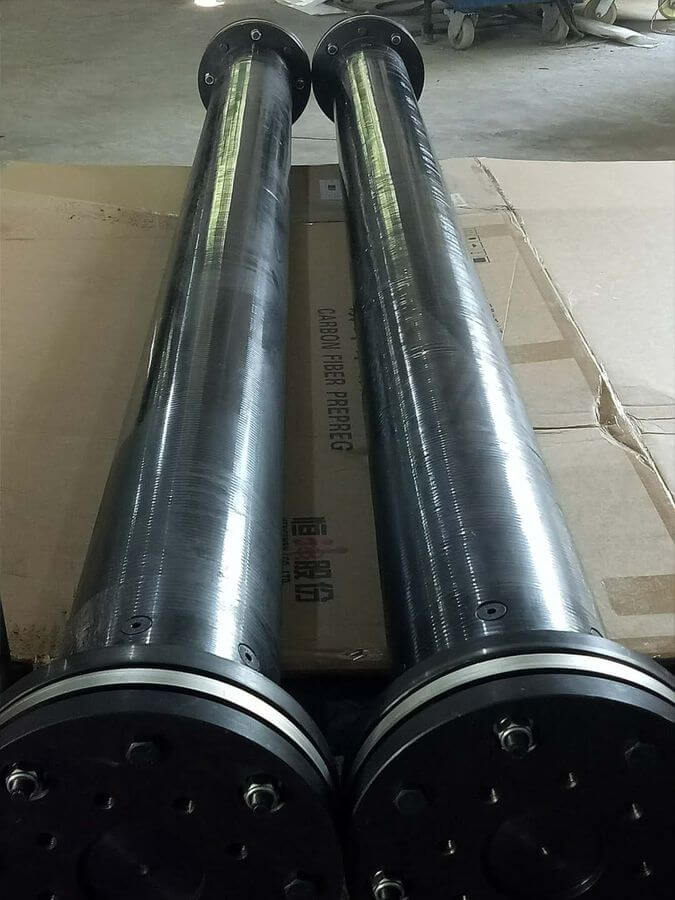

Custom Carbon Fiber Shaft Manufacturing Capabilities
As a vertically integrated manufacturer, Nanjing Baigang controls every aspect of production from raw material selection to final testing. Our state-of-the-art facility in Nanjing features:
- Advanced filament winding machines for precise fiber orientation control
- Computer-controlled curing ovens with temperature uniformity ±2°C
- CNC machining centers for precise end fitting integration
- Random signal vibration analyzers for dynamic performance testing
- Coordinate measuring machines (CMM) with 0.001mm accuracy
This comprehensive equipment suite enables us to produce carbon fiber shafts with consistent quality while accommodating custom requirements. Our engineering team works closely with clients to develop optimal solutions for unique application challenges, from specialized end fittings to custom surface finishes.
FAQ
What makes carbon fiber drive shafts superior to traditional steel shafts?
Carbon fiber shafts offer 40-60% weight reduction while maintaining comparable or superior strength, reducing energy consumption and equipment wear. Their corrosion resistance extends service life in harsh environments, and vibration damping properties improve system stability.
How do you ensure dimensional accuracy in custom shaft production?
We use CNC machining centers with 0.005mm positional accuracy and verify all dimensions using coordinate measuring machines (CMM) before shipping. For critical applications, we provide detailed inspection reports documenting all measured parameters.
What quality certifications do your carbon fiber shafts hold?
Our production facility maintains ISO 9001:2000 certification, and all shafts undergo vibration analysis, torsional testing, and dimensional verification per ASTM D3039 and ISO 527 standards before delivery.
Can you modify existing shaft designs for specific applications?
Absolutely. Our engineering team specializes in customizing shaft properties including length, diameter, torsional stiffness, and end fittings to meet unique application requirements while maintaining structural integrity.
What lead time should I expect for custom carbon fiber shafts?
Standard production cycles range from 3-6 weeks depending on complexity, with expedited options available for urgent requirements. We maintain strategic raw material inventory to minimize delays in the production process.
How do you handle international shipping and customs clearance?
We have extensive experience shipping globally and can arrange door-to-door delivery through our network of certified freight forwarders. All shipments include proper documentation to facilitate smooth customs clearance in your country.
What maintenance is required for carbon fiber drive shafts?
Minimal maintenance is required beyond periodic visual inspection for damage. Unlike steel shafts, they don’t require lubrication or corrosion protection treatments, reducing long-term maintenance costs significantly.
Can you provide samples for testing before full production?
Yes, we offer prototype production services to validate design concepts before full-scale manufacturing. This allows you to test shaft performance in your actual operating environment with minimal upfront investment.
Summary
Selecting the right carbon fiber drive shaft requires evaluating mechanical requirements, environmental factors, and dimensional specifications against available manufacturing capabilities. As a leading producer with nearly two decades of experience, Nanjing Baigang Composite Materials offers proven solutions for wind power, cooling towers, and textile machinery applications, backed by comprehensive testing and ISO-certified quality systems. Our custom manufacturing capabilities ensure optimal performance in even the most demanding industrial environments, while our commitment to continuous improvement keeps us at the forefront of carbon fiber component technology.
